• 16" x 7.0" lux styled steel wheels
• P225/75R16 on/off-road BSW tires
• Black easy-folding soft top w/Sunrider feature
• Full size spare tire
• Matching spare wheel
• Outside tire carrier
• Sunrider soft top feature
• Black front bumper
• Black rear bumper
• Accent color fender flares
• Body color grille
• Halogen headlamps
• Fog lamps
• Tinted windshield glass
• Front door tinted glass
• Manual fold-away exterior mirrors
• Variable intermittent windshield wipers

• Uconnect 130 -inc: AM/FM stereo, CD/MP3 player
• (6) speakers
• Audio input jack
• Fixed long mast antenna

• Cloth seat trim -inc: adjustable head restraints
• Low back bucket seats
• Reclining front seats
• Driver height adjustment
• 60/40 folding rear seat
• Rear seat outboard head restraints
• Full length floor console
• Storage tray
• Front seat area carpet
• Rear/cargo area carpet
• Front & rear floor mats
• Cargo compartment floor mat
• Tilt steering column
• Steering wheel mounted audio controls
• Premium instrumentation w/tachometer
• Outside temp & compass gauge
• Speed control
• Sentry Key theft deterrent system
• Air conditioning

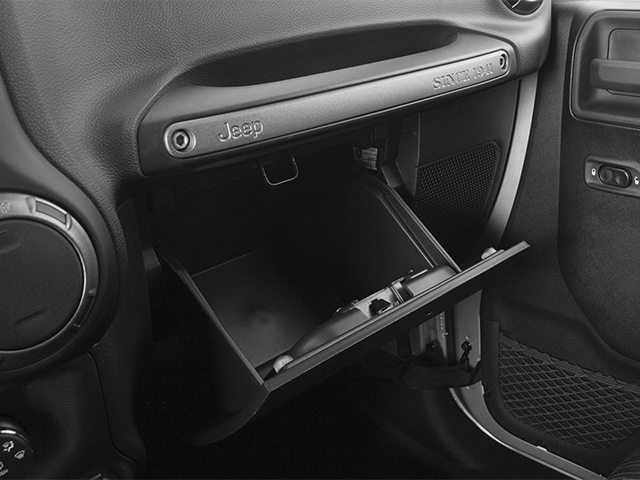

• Locking glove box
• 12V aux pwr outlet
• Sport bar w/full padding
• Sliding sunvisors w/mirrors
• Front seatback map pockets
• Front dome light w/on/off switch
• Rear dome light w/on/off switch
• Cargo compartment covered storage
• Cargo tie down loops

• 4-wheel anti-lock brakes
• Electronic stability control
• Electronic roll mitigation
• Hill start assist
• Traction control
• Driver & front passenger advanced multi-stage frontal air bags
• Child safety rear door locks
• Tire pressure monitoring warning lamp

3.6L SMPI 24V VVT V6 ENGINE

• (STD)

• 23S CUSTOMER PREFERRED ORDER SELECTION PKG -inc: 3.6L V6 engine

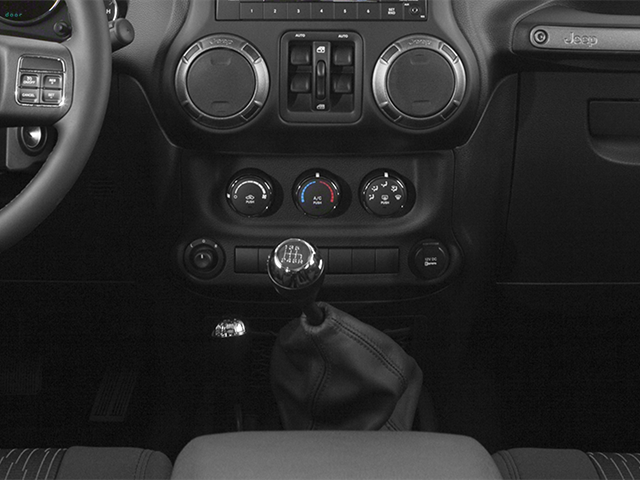

• 6-speed manual trans
• 17 x 7.5 aluminum wheels
• auto-dimming rearview mirror w/reading lamp
• chrome/leather-wrapped shift knob
• deep-tint sunscreen windows
• leather-wrapped steering wheel
• P255/75R17 on/off-road OWL tires
• pwr door locks
• pwr windows w/front one-touch down
• pwr heated exterior mirrors
• remote keyless entry
• security alarm AAJ
• AHT
• DEH
• ERB
• MX3
• RC9
• RSC

• Vehicle
• EPA Classification: 4WD Sport Utility Vehicles
• Mileage
• Fuel Economy Est-Combined (MPG): 18
• EPA Fuel Economy Est - City (MPG): 16
• EPA Fuel Economy Est - Hwy (MPG): 21
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 160
• Cooling System
• Total Cooling System Capacity (qts): 14.0
• Weight Information
• Base Curb Weight (lbs): 4075
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 2000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 200
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 2000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 300
• Suspension
• Suspension Type - Front: Live Axle
• Suspension Type - Rear: Live Axle
• Suspension Type - Front (Cont.): w/Coil Springs
• Suspension Type - Rear (Cont.): w/Coil Springs
• Shock Absorber Diameter - Front (mm): N/A
• Shock Absorber Diameter - Rear (mm): N/A
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.9 x 1.1
• Rear Brake Rotor Diam x Thickness (in): 11.9 x 1.1
• Tires
• Front Tire Order Code: TRM
• Rear Tire Order Code: TRM
• Spare Tire Order Code: TBB
• Front Tire Size: P225/75R16
• Rear Tire Size: P225/75R16
• Spare Tire Size: P225/75R16
• Wheels
• Front Wheel Size (in): 16 x 7.0
• Rear Wheel Size (in): 16 x 7.0
• Spare Wheel Size (in): 16 x 7.0
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), Overall: 16.7
• Lock to Lock Turns (Steering): 3.5
• Turning Diameter - Curb to Curb (ft): 41.2
• Turning Diameter - Wall to Wall (ft): N/A
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 18.6
• Exterior Dimensions
• Wheelbase (in): 116.0
• Length, Overall (in): 173.4
• Width, Max w/o mirrors (in): 73.7
• Height, Overall (in): 70.9
• Track Width, Front (in): 61.9
• Track Width, Rear (in): 61.9
• Min Ground Clearance (in): 8.7
• Rear Door Opening Height (in): 37.1
• Rear Door Opening Width (in): 58.7
• Liftover Height (in): 27.8
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): - TBD -
• Cargo Area Length @ Floor to Seat 2 (in): - TBD -
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 44.7
• Cargo Box (Area) Height (in): - TBD -
• Cargo Volume to Seat 1 (ft³): 70.6
• Cargo Volume to Seat 2 (ft³): 31.5
• Interior Dimensions
• Passenger Capacity: 5
• Passenger Volume (ft³): 104.0
• Front Head Room (in): 41.3
• Front Leg Room (in): 41.0
• Front Shoulder Room (in): 55.8
• Front Hip Room (in): 55.6
• Second Head Room (in): 40.4
• Second Leg Room (in): 37.2
• Second Shoulder Room (in): 56.8
• Second Hip Room (in): 56.7
• Summary

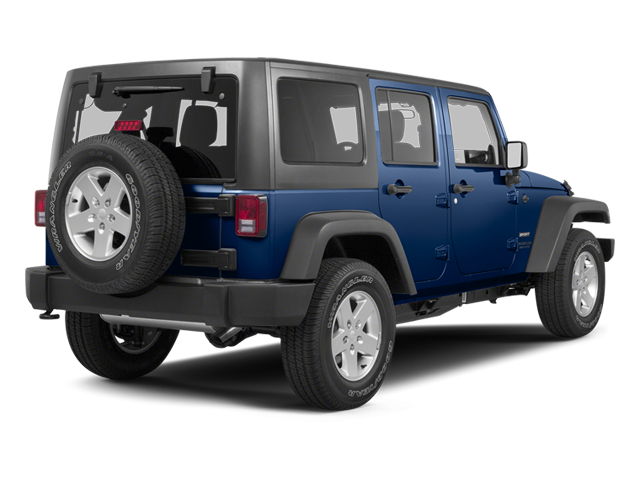

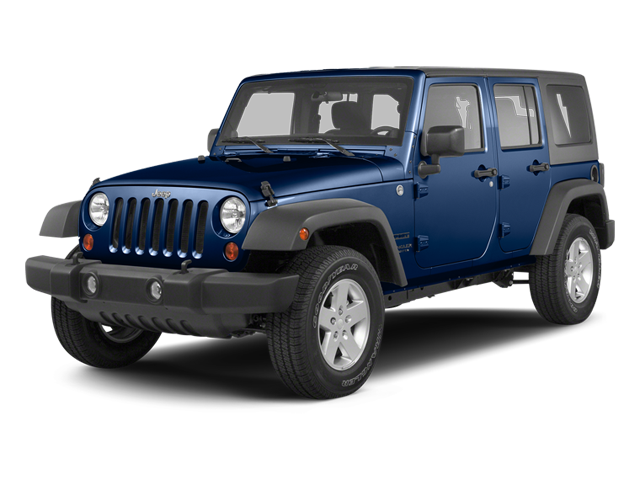

• Vehicle Name: Jeep Wrangler Unlimited
• Body Style: Sport Utility Vehicle
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 10.2
